| TC1..为单极点火器。 TC2..为双极点火器。 百得燃烧器的BT14型使用TC2。 如今新型的RL34、RL44、RS44、RL34等燃烧器使用该型号的变压器
| |||||||
|

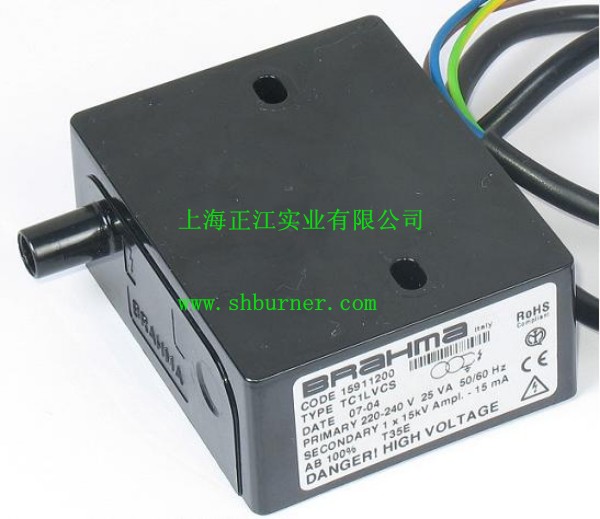

(Brama)
CODE 15911200
TYPE TC1LVCS
DATE 19-02
Prymary 220-240V - 25VA - 50-60Hz
Secondary 1*15KV Ampl.-15 mA
AB . T35E
DANGER! HIGH VOLTAGE!

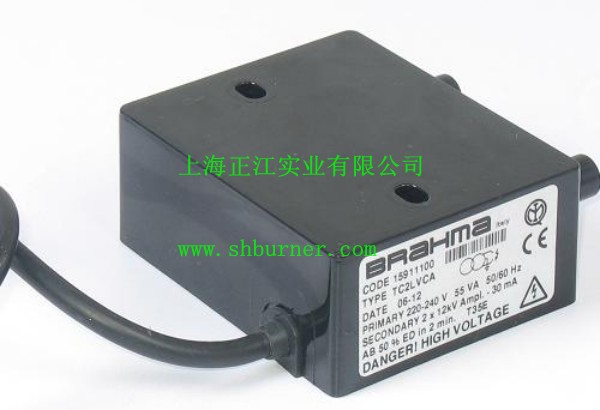

Brahma
CODE 15911100
TYPE TC2LVCA
DATE 09-11
PRIMARY 220-240 V 55 VA 50/60 Hz
SECONDARY 2 x 12kV Ampl. - 30 mA
AB 50% ED in 2 min. T35E
Itali; RoHS Compliant

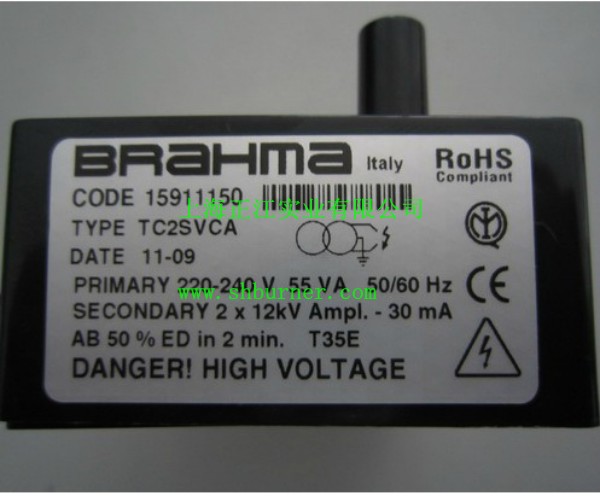

Brahma
CODE 15911150
TYPE TC2SVCA
DATE 09-11
PRIMARY 220-240 V 55 VA 50/60 Hz
SECONDARY 2 x 12kV Ampl. - 30 mA
AB 50% ED in 2 min. T35E
Itali; RoHS Compliant
IGNITION TRANSFORMER (High voltage) BRAHMA
CODE 15910551
TYPE TC2STCAF
DATE 10-10
Primary 220-240 V 55 VA 50/60 Hz
Secondary 2 x 12 kV Ampl. - 30 mA
AB 50% ED in 2 min. T35E
High voltage transformer
Brahma
CODE 15911152
TYPE TC2SVCA
DATE 09-11
PRIMARY 220-240 V 55 VA 50/60 Hz
SECONDARY 2 x 12kV Ampl. - 30 mA
AB 50% ED in 2 min. T35E
Itali; RoHS Compliant
(Brama)
CODE 15910504
TYPE TC1STPAF
DATE 19-02
Prymary 220-240V - 45VA - 50-60Hz
Secondary 1*15KV Ampl.-25 mA
AB 50% ED in 2 min. T35E
DANGER! HIGH VOLTAGE!
